FNR10K271
Наведите на картинку для увеличения
FNR10K271 – Описание

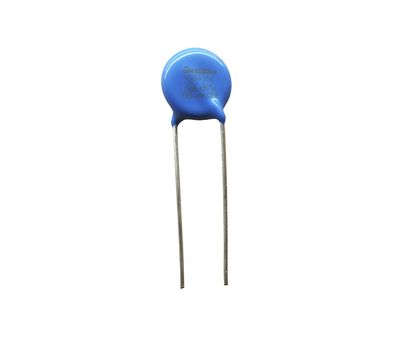

Варистор FNR10K271
- Обратное напряжение: 270 В
- Диаметр: 13,5 мм
- Широкий диапазон напряжений: 18 В -- 1,8 кВ;
Размеры варисторов FNR-10Kxxx:
| Напряжение, В | D, макс | d, ±0.1 | W, ±0.1 | T, макс |
| 18--330 | 13.5 | 0.8 | 7.5 | 5.4 |
| 360--1100 | 14 | 0.8 | 7.5 | 8.5 |
Наименование | Напряжение, В | Максимальное рабочее напряжение, В | Максимальное ограничивающее напряжение | Ток перегрузки, (A) | Поглощаемая энергия | Рассеиваемая мощность, Вт | Емкость, пФ | ||||
AC | DC | VC(В) | Ip(А) | 2 time | 1 time | 2Ms(J) | 10/1000(J) | ||||
| FNR-10K180 | 18 | 11 | 14 | 36 | 5 | 250 | 500 | 1.5 | 2.1 | 0.05 | 7500 |
| FNR-10K220 | 22 | 14 | 18 | 43 | 5 | 250 | 500 | 2.0 | 2.5 | 0.05 | 6000 |
| FNR-10K270 | 27 | 17 | 22 | 53 | 5 | 250 | 500 | 2.5 | 3.0 | 0.05 | 4000 |
| FNR-10K330 | 33 | 20 | 26 | 65 | 5 | 250 | 500 | 3.0 | 4.0 | 0.05 | 3000 |
| FNR-10K390 | 39 | 25 | 31 | 77 | 5 | 250 | 500 | 3.5 | 4.6 | 0.05 | 2600 |
| FNR-10K470 | 47 | 30 | 38 | 93 | 5 | 250 | 500 | 4.5 | 5.5 | 0.05 | 2200 |
| FNR-10K560 | 56 | 35 | 45 | 110 | 5 | 250 | 500 | 5.5 | 7.0 | 0.05 | 1800 |
| FNR-10K680 | 68 | 40 | 56 | 135 | 5 | 250 | 500 | 6.5 | 8.2 | 0.05 | 1300 |
| FNR-10K820 | 82 | 50 | 65 | 135 | 5 | 250 | 500 | 8.0 | 12.0 | 0.4 | 1800 |
| FNR-10K101 | 100 | 60 | 85 | 165 | 5 | 250 | 500 | 10.0 | 15.0 | 0.4 | 1400 |
| FNR-10K121 | 120 | 75 | 100 | 200 | 25 | 1250 | 2500 | 12.0 | 18.0 | 0.4 | 1100 |
| FNR-10K151 | 150 | 95 | 125 | 250 | 25 | 1250 | 2500 | 16.0 | 22.0 | 0.4 | 900 |
| FNR-10K181 | 180 | 115 | 150 | 300 | 25 | 1250 | 2500 | 18.0 | 25.0 | 0.4 | 700 |
| FNR-10K201 | 200 | 130 | 170 | 340 | 25 | 1250 | 2500 | 20.0 | 30.0 | 0.4 | 500 |
| FNR-10K221 | 220 | 140 | 180 | 360 | 25 | 1250 | 2500 | 23.0 | 32.0 | 0.4 | 450 |
| FNR-10K241 | 240 | 150 | 200 | 395 | 25 | 1250 | 2500 | 23.0 | 35.0 | 0.4 | 400 |
| FNR-10K271 | 270 | 175 | 225 | 455 | 25 | 1250 | 2500 | 30.0 | 40.0 | 0.4 | 350 |
| FNR-10K301 | 300 | 200 | 250 | 500 | 25 | 1250 | 2500 | 27.0 | 42.0 | 0.4 | 325 |
| FNR-10K331 | 330 | 210 | 275 | 550 | 25 | 1250 | 2500 | 30.0 | 44.0 | 0.4 | 325 |
| FNR-10K361 | 360 | 230 | 300 | 595 | 25 | 1250 | 2500 | 25.0 | 47.0 | 0.4 | 300 |
| FNR-10K391 | 390 | 250 | 320 | 650 | 25 | 1250 | 2500 | 40.0 | 60.0 | 0.4 | 270 |
| FNR-10K431 | 430 | 275 | 350 | 710 | 25 | 1250 | 2500 | 45.0 | 65.0 | 0.4 | 250 |
| FNR-10K471 | 470 | 300 | 385 | 775 | 25 | 1250 | 2500 | 45.0 | 70.0 | 0.4 | 230 |
| FNR-10K511 | 510 | 318 | 415 | 840 | 25 | 1250 | 2500 | 45.0 | 70.0 | 0.4 | 200 |
| FNR-10K561 | 560 | 350 | 455 | 925 | 25 | 1250 | 2500 | 45.0 | 70.0 | 0.4 | 180 |
| FNR-10K621 | 620 | 380 | 505 | 1025 | 25 | 1250 | 2500 | 45.0 | 70.0 | 0.4 | 130 |
| FNR-10K681 | 680 | 420 | 560 | 1120 | 25 | 1250 | 2500 | 45.0 | 70.0 | 0.4 | 130 |
| FNR-10K751 | 750 | 460 | 615 | 1240 | 25 | 1250 | 2500 | 50.0 | 75.0 | 0.4 | 120 |
| FNR-10K781 | 780 | 485 | 640 | 1290 | 25 | 1250 | 2500 | 50.0 | 80.0 | 0.4 | 120 |
| FNR-10K821 | 820 | 510 | 670 | 1355 | 25 | 1250 | 2500 | 55.0 | 85.0 | 0.4 | 110 |
| FNR-10K911 | 910 | 550 | 745 | 1500 | 25 | 1250 | 2500 | 60.0 | 93.0 | 0.4 | 100 |
| FNR-10K102 | 1000 | 625 | 825 | 1650 | 25 | 1250 | 2500 | 65.0 | 102.0 | 0.4 | 90 |
| FNR-10K112 | 1100 | 680 | 895 | 1815 | 25 | 1250 | 2500 | 70.0 | 115.0 | 0.4 | 80 |
