FNR14K181
Наведите на картинку для увеличения
FNR14K181 – Описание

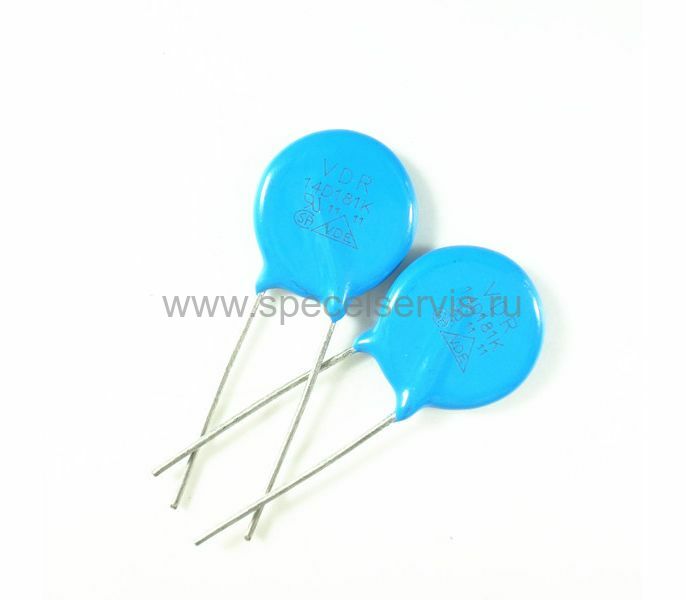

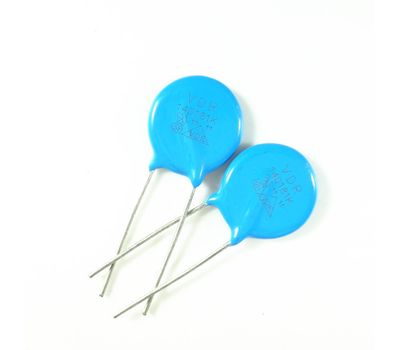

Варистор FNR14K181
- Обратное напряжение: 180 В
- Диаметр: 25 мм
- Широкий диапазон напряжений: 18 В -- 1,8 кВ;
Размеры варисторов FNR-14Kxxx:
| Напряжение, В | D, макс | d, ±0.1 | W, ±0.1 | H, макс | T, макс |
| 18--330 | 17.0 | 0.8 | 7.5 | 20.0 | 5.4 |
| 360--1100 | 17.5 | 0.8 | 7.5 | 20.5 | 8.5 |
| 180 | 25.0 | 0.8 | 15.0 | 30.0 | 12.0 |
|
Наименование
|
Напряжение,
В |
Максимальное рабочее напряжение, В
|
Максимальное ограничивающее напряжение
|
Ток перегрузки, A
|
Поглощаемая энергия
|
Рассеиваемая
мощность, Вт |
Емкость
при 1кГц, пФ |
||||
|
AC
|
DC
|
VC, В
|
Ip, А
|
2 time
|
1 time
|
2Ms, Дж
|
10/1000, Дж
|
||||
| FNR-14K180 |
18
|
11
|
14
|
36
|
10
|
500
|
1000
|
3.5
|
4.0
|
0.1
|
18000
|
| FNR-14K220 |
22
|
14
|
18
|
43
|
10
|
500
|
1000
|
4.0
|
5.0
|
0.1
|
15000
|
| FNR-14K270 |
27
|
17
|
22
|
53
|
10
|
500
|
1000
|
5.0
|
6.0
|
0.1
|
10000
|
| FNR-14K330 |
33
|
20
|
26
|
65
|
10
|
500
|
1000
|
6.0
|
7.5
|
0.1
|
7500
|
| FNR-14K390 |
39
|
25
|
31
|
77
|
10
|
500
|
1000
|
7.0
|
8.6
|
0.1
|
6500
|
| FNR-14K470 |
47
|
30
|
38
|
93
|
10
|
500
|
1000
|
8.5
|
10.0
|
0.1
|
5500
|
| FNR-14K560 |
56
|
35
|
45
|
110
|
10
|
500
|
1000
|
10.0
|
11.0
|
0.1
|
4500
|
| FNR-14K680 |
68
|
40
|
56
|
135
|
10
|
500
|
1000
|
12.0
|
14.0
|
0.1
|
3300
|
| FNR-14K820 |
82
|
50
|
65
|
135
|
10
|
500
|
1000
|
14.0
|
22.0
|
0.6
|
2900
|
| FNR-14K101 |
100
|
60
|
85
|
165
|
10
|
500
|
1000
|
18.0
|
28.0
|
0.5
|
2400
|
| FNR-14K121 |
120
|
75
|
100
|
200
|
50
|
2500
|
4500
|
20.0
|
32.0
|
0.6
|
1900
|
| FNR-14K151 |
150
|
95
|
125
|
250
|
50
|
2500
|
4500
|
25.0
|
40.0
|
0.6
|
1500
|
| FNR-14K181 |
180
|
115
|
150
|
300
|
50
|
2500
|
4500
|
30.0
|
50.0
|
0.6
|
1250
|
| FNR-14K201 |
200
|
130
|
170
|
340
|
50
|
2500
|
4500
|
35.0
|
57.0
|
0.6
|
1000
|
| FNR-14K221 |
220
|
140
|
180
|
360
|
50
|
2500
|
4500
|
40.0
|
60.0
|
0.6
|
1000
|
| FNR-14K241 |
240
|
150
|
200
|
395
|
50
|
2500
|
4500
|
40.0
|
63.0
|
0.6
|
900
|
| FNR-14K271 |
270
|
175
|
225
|
455
|
50
|
2500
|
4500
|
50.0
|
70.0
|
0.6
|
750
|
| FNR-14K301 |
300
|
200
|
250
|
500
|
50
|
2500
|
4500
|
55.0
|
75.0
|
0.6
|
650
|
| FNR-14K331 |
330
|
210
|
275
|
550
|
50
|
2500
|
4500
|
60.0
|
80.0
|
0.6
|
650
|
| FNR-14K361 |
360
|
230
|
300
|
595
|
50
|
2500
|
4500
|
65.0
|
93.0
|
0.6
|
550
|
| FNR-14K391 |
390
|
250
|
320
|
650
|
50
|
2500
|
4500
|
70.0
|
100.0
|
0.6
|
500
|
| FNR-14K431 |
430
|
275
|
350
|
710
|
50
|
2500
|
4500
|
75.0
|
115.0
|
0.6
|
450
|
| FNR-14K471 |
470
|
300
|
385
|
775
|
50
|
2500
|
4500
|
80.0
|
125.0
|
0.6
|
440
|
| FNR-14K511 |
510
|
318
|
415
|
840
|
50
|
2500
|
4500
|
80.0
|
125.0
|
0.6
|
380
|
| FNR-14K561 |
560
|
350
|
455
|
925
|
50
|
2500
|
4500
|
80.0
|
125.0
|
0.6
|
354
|
| FNR-14K621 |
620
|
380
|
505
|
1025
|
50
|
2500
|
4500
|
80.0
|
125.0
|
0.6
|
250
|
| FNR-14K681 |
680
|
420
|
560
|
1120
|
50
|
2500
|
4500
|
90.0
|
130.0
|
0.6
|
250
|
| FNR-14K751 |
750
|
460
|
615
|
1240
|
50
|
2500
|
4500
|
100.0
|
143.0
|
0.6
|
230
|
| FNR-14K781 |
780
|
485
|
640
|
1290
|
50
|
2500
|
4500
|
105.0
|
148.0
|
0.6
|
230
|
| FNR-14K821 |
820
|
510
|
670
|
1355
|
50
|
2500
|
4500
|
110.0
|
157.0
|
0.6
|
200
|
| FNR-14K911 |
910
|
550
|
745
|
1500
|
50
|
2500
|
4500
|
120.0
|
175.0
|
0.6
|
180
|
| FNR-14K102 |
1000
|
625
|
825
|
1650
|
50
|
2500
|
4500
|
130.0
|
190.0
|
0.6
|
150
|
| FNR-14K112 |
1100
|
680
|
895
|
1815
|
50
|
2500
|
4500
|
140.0
|
213.0
|
0.6
|
150
|
| FNR-14K182 |
1800
|
1000
|
1465
|
2970
|
25
|
1250
|
2500
|
240.0
|
337.0
|
0.6
|
100
|
